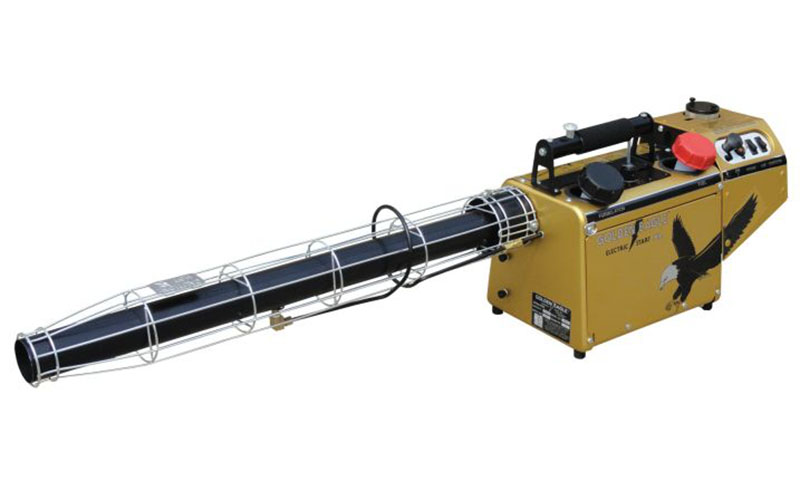

Golden Eagle Electric Start XL SmokeMaker
Thermal Aerosol – Fog Petroleum Based, Resonant Pulse Principle

Golden Eagle Features

Thermal Aerosol-Fog Petroleum-Based, Resonant Pulse Principle.
This machine is one of the world's finest insecticide fog generators, built to precision standards. With reasonable care and maintenance, this efficient mechanism will provide many hours of service. For best results, this fog generator must be operated and maintained in compliance with these instructions.

Golden Eagle Output

• Formulation Output: 0-9 Gal/Hr. 0-34 liters/hr.

Golden Eagle Working Principle

The engine is essentially a tube with a combustion chamber, an intake valve, and a supply of a combustible mixture of fuel and air. To begin, a negative pressure is created in the fuel tank by depressing a flexible priming bulb. This draws fuel into the priming bulb, which is then forced into the antechamber and combustion chamber, where it is ignited by the spark plug. An explosion occurs in the combustion chamber driving the gases out the engine tube. The negative pressure created by the gas flow out the engine tube causes the intake valves to open allowing more air to pass through the venturi of the carburetor. The air passing through the carburetor aspirates fuel from the carburetor in a combustible mixture. This mixture is ignited again and the cycle is repeated. The frequency of repeated explosions is many times per second.

Golden Eagle Dimensions

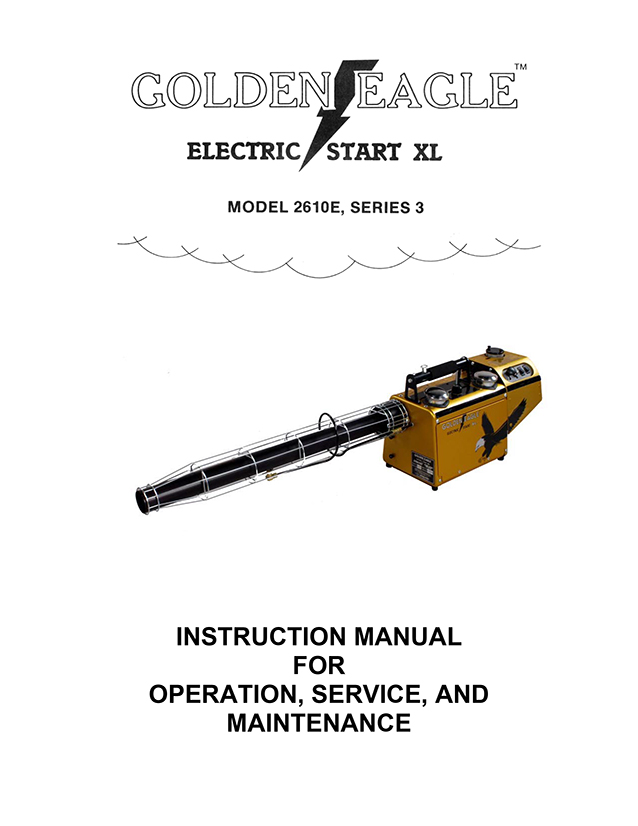

Golden Eagle Electric Start XL Instruction Manual

• Golden Eagle PDF Download:
