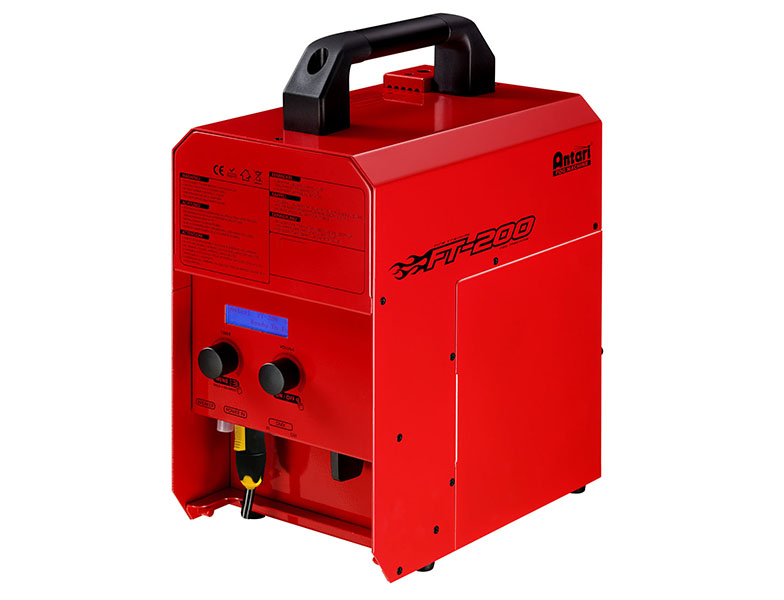

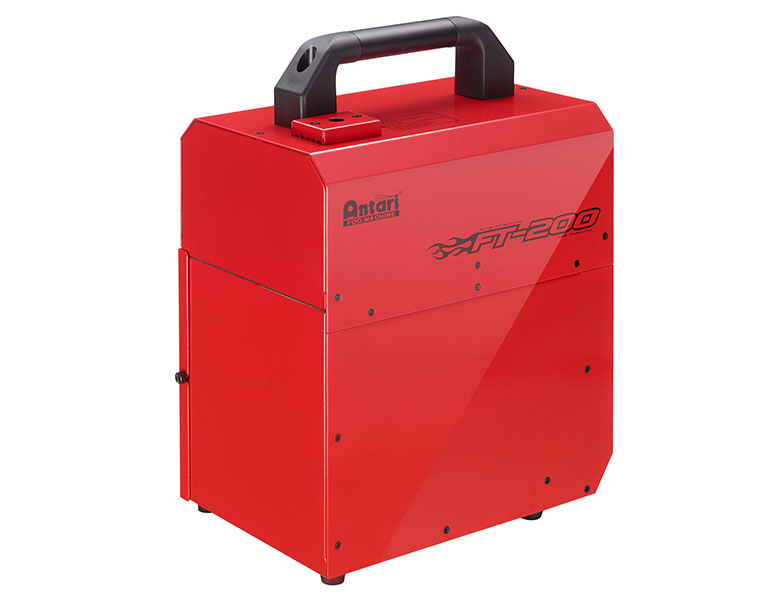

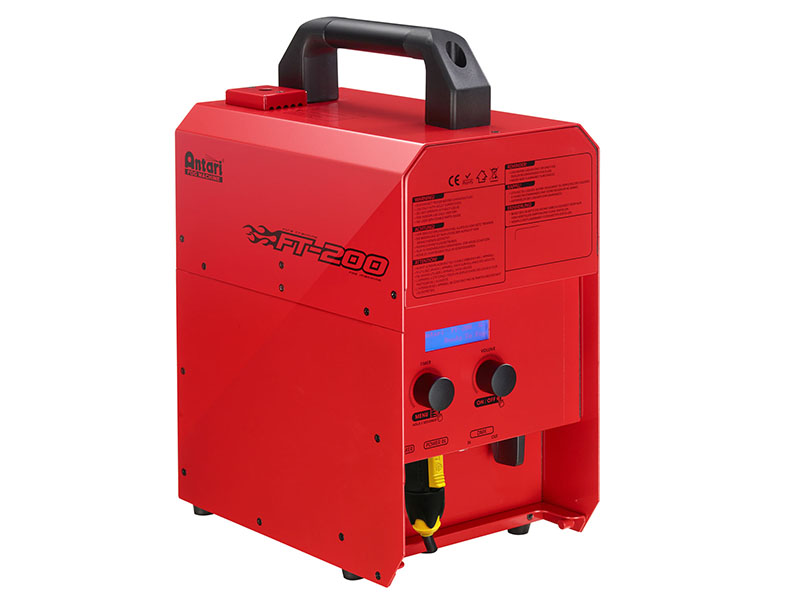

ZV FT-200 SmokeMaker
40,000 cfm, High-Output, IP-63 Rated Smoke Generator
ZV, a world renowned leader in entertainment atmospheric effects continues its expansion into fire and rescue training with the introduction of the all new FT-200 smoke generator.
Built on the success of ZV’s first smoke generator developed exclusively for fire and rescue training, the popular FT-100, the new FT-200 introduces new technologies to offer one of the worlds most rugged and advanced smoke generators for fire and rescue training.
- All new advanced steel heater block that doubles the flow rate of the FT-100, essentially increasing output by 200%.
- IP rated case design that allows the FT-200 to be used outdoor.
- Sleek and compact casing design with a heavy-duty handle allows the unit to be easily transported and stored.
- Capable of multi-position operation allowing the unit to generate smoke in either a vertical or horizontal position.
- Built-in electronic timer for hands free operation.
Specification
- Input voltage – US model : AC 100-120V, 50 / 60Hz 13.5A – EU model : AC 220-240V, 50 / 60Hz 7A
- Rated power – 1600W
- Warm-up time – 7.5 minutes (approx.)
- Fluid consumption – 270 ml/min
- Fluid tank capacity – 2.4 Liter (0.63 gallon)
- Ambient temp. range – 0 °C - 40 °C (32 °F-104 °F)
- Control – DMX512, Timer, Manual, Wireless
- DMX channels – 1 channel
- Connection – Neutrik Powercon (Power) XLR 5-pin (DMX)
- Optional accessories – Z-3 cable remote
- Dimension – L301 W194 H414 mm (L11.85 W7.64 H16.30 inch)
- Weight – 16 kg (35.27 lbs)
