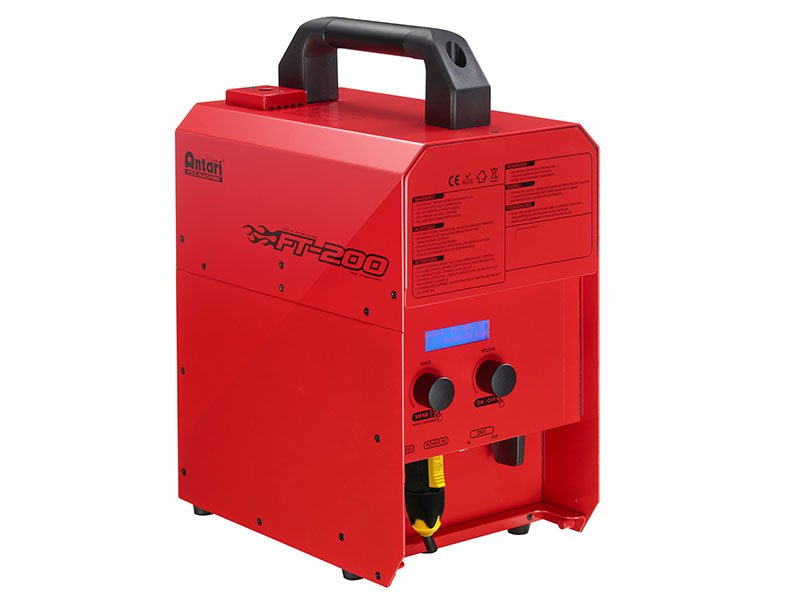

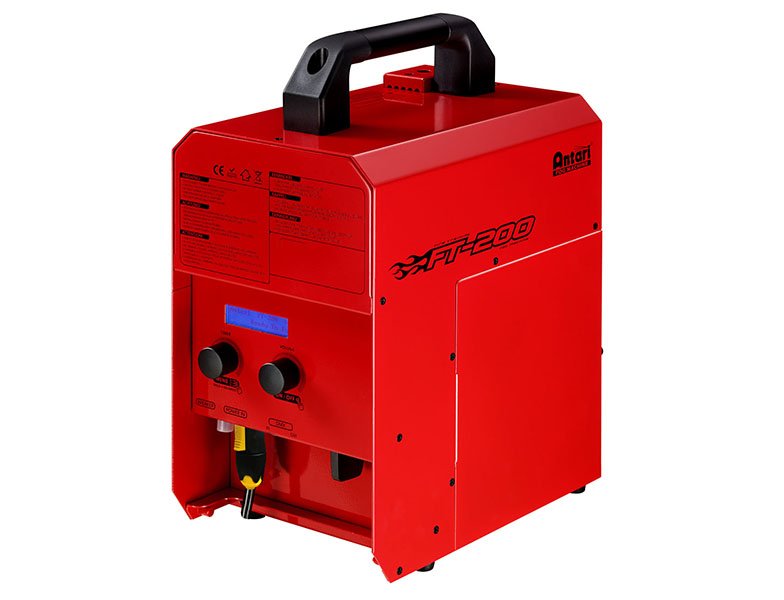

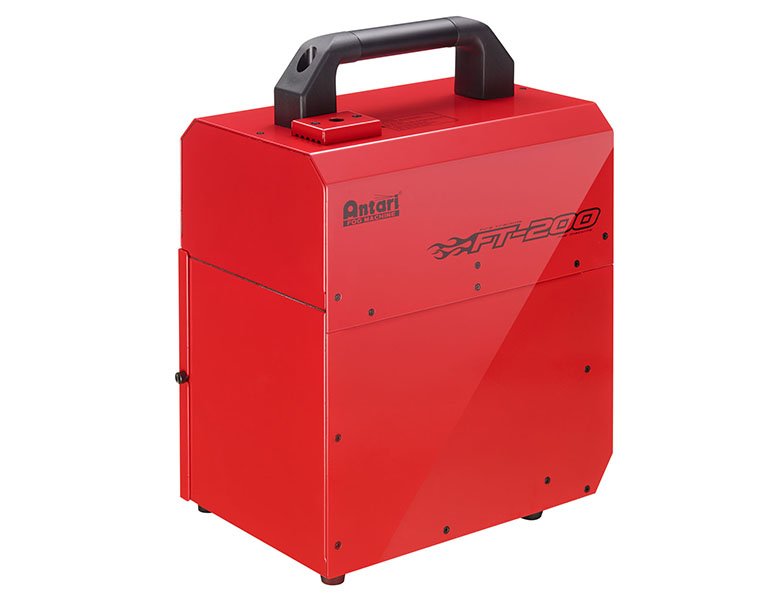

ZV FT-200 SmokeMaker

$1209.00

Please contact us to make an order.

40,000 cfm, High-Output, IP-63 Rated Smoke Generator

ZV, a world renowned leader in entertainment atmospheric effects continues its expansion into fire and rescue training with the introduction of the all new FT-200 smoke generator.

Built on the success of ZV’s first smoke generator developed exclusively for fire and rescue training, the popular FT-100, the new FT-200 introduces new technologies to offer one of the worlds most rugged and advanced smoke generators for fire and rescue training.

  • All new advanced steel heater block that doubles the flow rate of the FT-100, essentially increasing output by 200%.
  • IP rated case design that allows the FT-200 to be used outdoor.
  • Sleek and compact casing design with a heavy-duty handle allows the unit to be easily transported and stored.
  • Capable of multi-position operation allowing the unit to generate smoke in either a vertical or horizontal position.
  • Built-in electronic timer for hands free operation.
  • Input voltage – US model : AC 100-120V, 50 / 60Hz 13.5A – EU model : AC 220-240V, 50 / 60Hz 7A
  • Rated power – 1600W
  • Warm-up time – 7.5 minutes (approx.)
  • Fluid consumption – 270 ml/min
  • Fluid tank capacity – 2.4 Liter (0.63 gallon)
  • Ambient temp. range – 0 °C - 40 °C (32 °F-104 °F)
  • Control – DMX512, Timer, Manual, Wireless
  • DMX channels – 1 channel
  • Connection – Neutrik Powercon (Power) XLR 5-pin (DMX)
  • Optional accessories – Z-3 cable remote
  • Dimension – L301 W194 H414 mm (L11.85 W7.64 H16.30 inch)
  • Weight – 16 kg (35.27 lbs)
