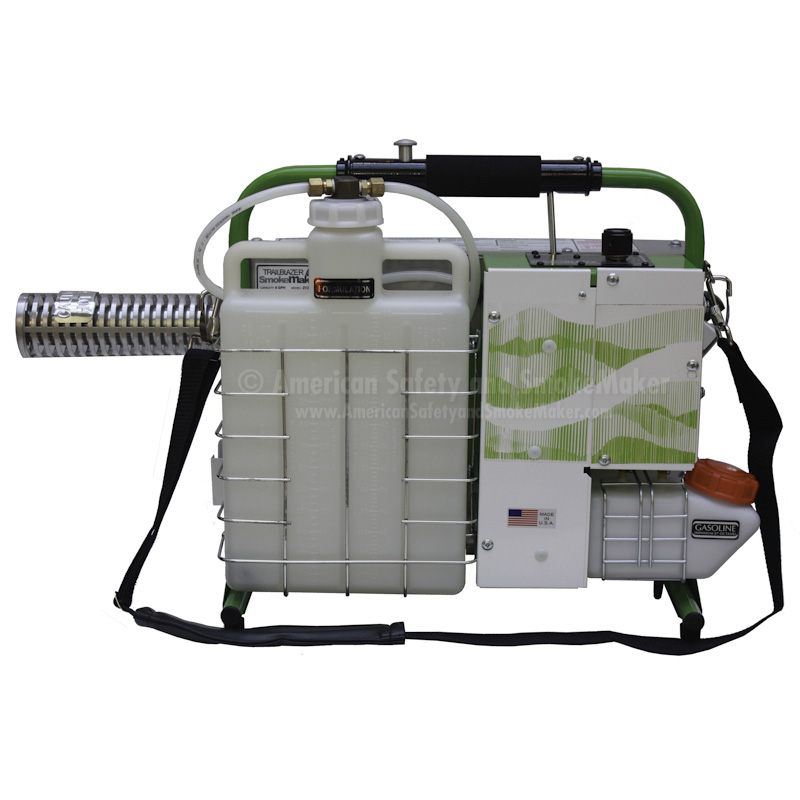

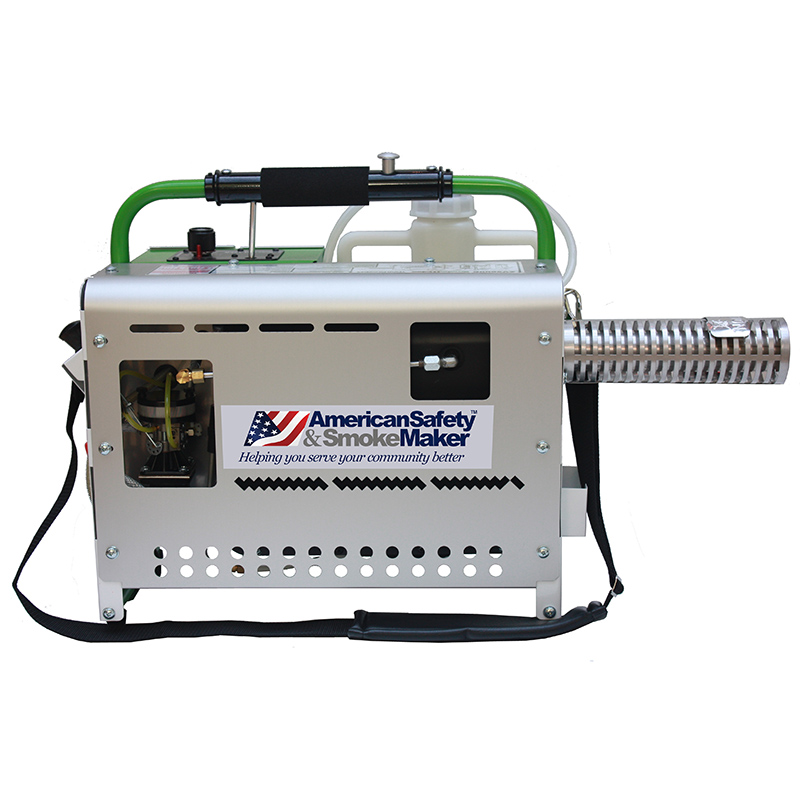

The ZV2600 SmokeMaker
The ZV2600 SmokeMaker produces 31,700 cubic feet (900 cubic meters) of effective output per minute.
Dispense either petroleum or water-based smoke fluid.
NOTE We HIGHLY recommend petroleum fluid with the ZV2600 the resulting fog is DRAMATICALLY thicker, dryer and more effective.
- One year warranty
- Gas Powered, no external power needed.
- Dispense either petroleum or water-based smoke fluid.
- Easy 12-volt starting system
- Virtually no carbon monoxide
- All serviceable parts are exposed & visible for easy access
- Competitive output comparison: 30,000+ cfm
- Smoke Output: 30,000 plus cubic feet
- Formulation Output: 0-5 gal/hr, or 0-19 liters/hr.
- Type: Thermal aerosol-fog, resonant pulse principle.
- Produces 31,700 cubic feet (900 cubic meters) of effective output per minute.
- Engine Performance: 24 Hp, or 18 KW, or 15,100 Kcal/hr.
- Fuel Consumption: 0.3 GPH or 1.1 liters/hr
- Weight (Empty): 25 lbs. or 11.3 kg
- Weight (Full): 37 lbs. or 16.8 kg
- Fuel tank capacity: 0.85 qts or 0.8 liters
- Formulation Tank capacity: 1 gallon or 3.8 liters

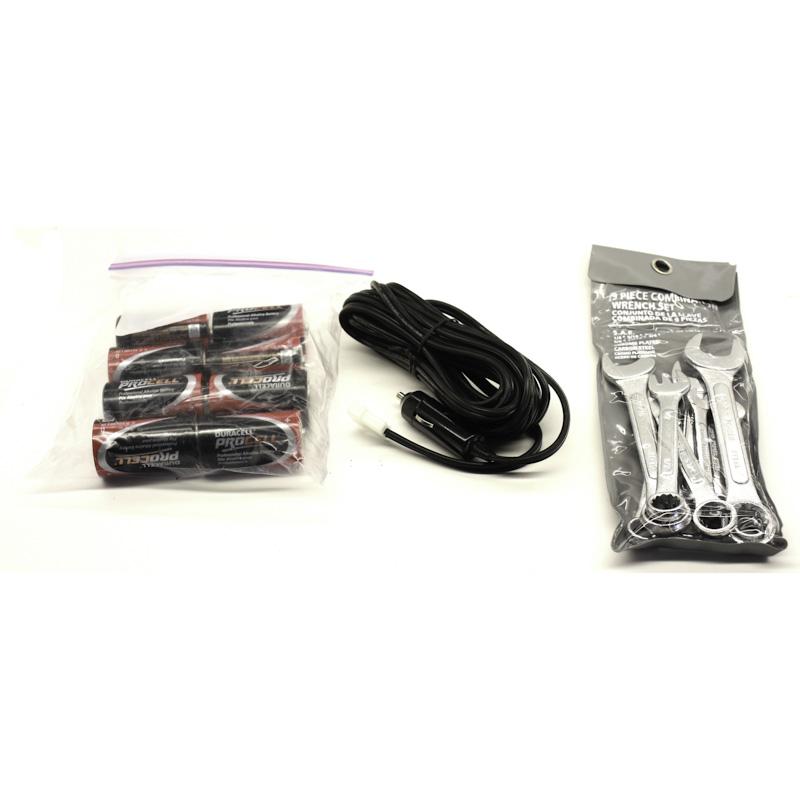

- Power Supply: Eight 1.5 V "D" size alkaline batteries
or an automobile cigarette lighter adapter
or another 12 VDC auxiliary power source.
- Length: 32 in or 81.28 cm.
- Width: 13 in or 33.02 cm
- Height: 20 in or 50.08 cm
- Fog Particle size: 0.5 - 50 microns (mass meridian diameter)
- Shipping data: L x W x H: 32 x 14 x 21 (in) or 81 x 36 x 53 (cm)
- Weight: 41 lbs. or 18.6 kg
- Volume: 5.44 cu. Ft or 0.154 cu. M.
Trailblazer ZV2600 Instruction Manual
- LeakBuster™ Pro PDF Download:
RECOMMENDED RELATED PRODUCTS FOR THIS MACHINE
